Bucket Mixer 20 L

Optimally suited for producing small quantities of mixing material in laboratories. The compulsory mixer handles concrete with all common aggregate sizes, mortar, etc., and thanks to its high motor output is particularly well suited for self-compacting and high-performance concrete in earth-moist consistency. The use of a stirrer adapter or additional mixing tools keeps the bucket mixer highly flexible in terms of applications.

Article nr: 20-00024-Z, 20-00025-FU, 20-00026-FUZ Category: Concrete

Description

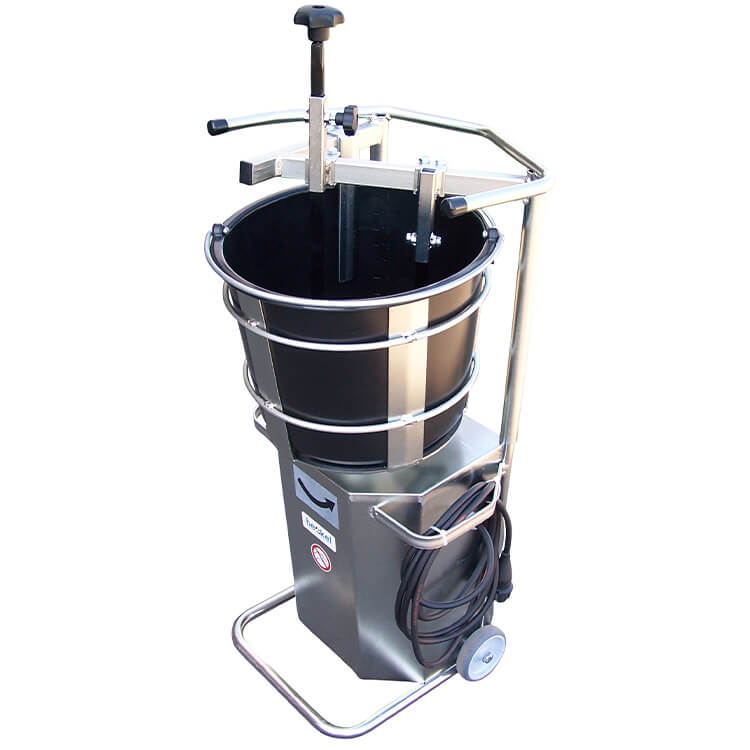

Supplied complete with PE construction bucket (black, 20 L — sufficient for 3 cube specimens 100 mm). Alternatively available with stainless steel bucket. Basic equipment includes outer wall scraper, mixing paddle and adjustable extra scraper. Polycarbonate safety guard, safety switch and EMERGENCY STOP. Connection 230 V / 0.75 kW (400 V at no extra cost, please state when ordering). Weight approx. 39 kg, dimensions 43 × 45 × 125 cm, usable volume approx. 9–11 L.

Variants:

20-00024 – Z: With time relay, setting 1–10 min
20-00025 – FU: With frequency converter, approx. 15–50 rpm
20-00026 – FUZ: With frequency converter, speed control and time relay, approx. 10–50 rpm, 1–10 min

Bucket Mixer 20 L
